BAOMAIN Delay ON Timer Relay,16A 2-SPDT (2NO 2NC),12-240V AC/DC,TBT7-B2,0.1s-10 Days Range Adjustable Dual Circuit Time Relay DIN Rail Mount,for Multi-Load Control
Product details
| Management number | 233918482 | Release Date | 2026/06/27 | List Price | $6.40 | Model Number | 233918482 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Dual 2-SPDT Contacts & Universal Voltage] Features a powerful double-pole double-throw (2-C) contact configuration, enabling simultaneous control of two independent electrical paths. Operates on a wide power supply range of AC/DC 12V-240V (50/60Hz), compatible with 12V/24V battery systems and 110V/220V mains
- [Dedicated Delay ON Function] Specifically designed for Delay ON (Power-on Delay) operations. Once energized, the relay initiates a countdown and switches both sets of contacts after the set duration. Ideal for protecting power grids by staggering the startup of high-power industrial equipment

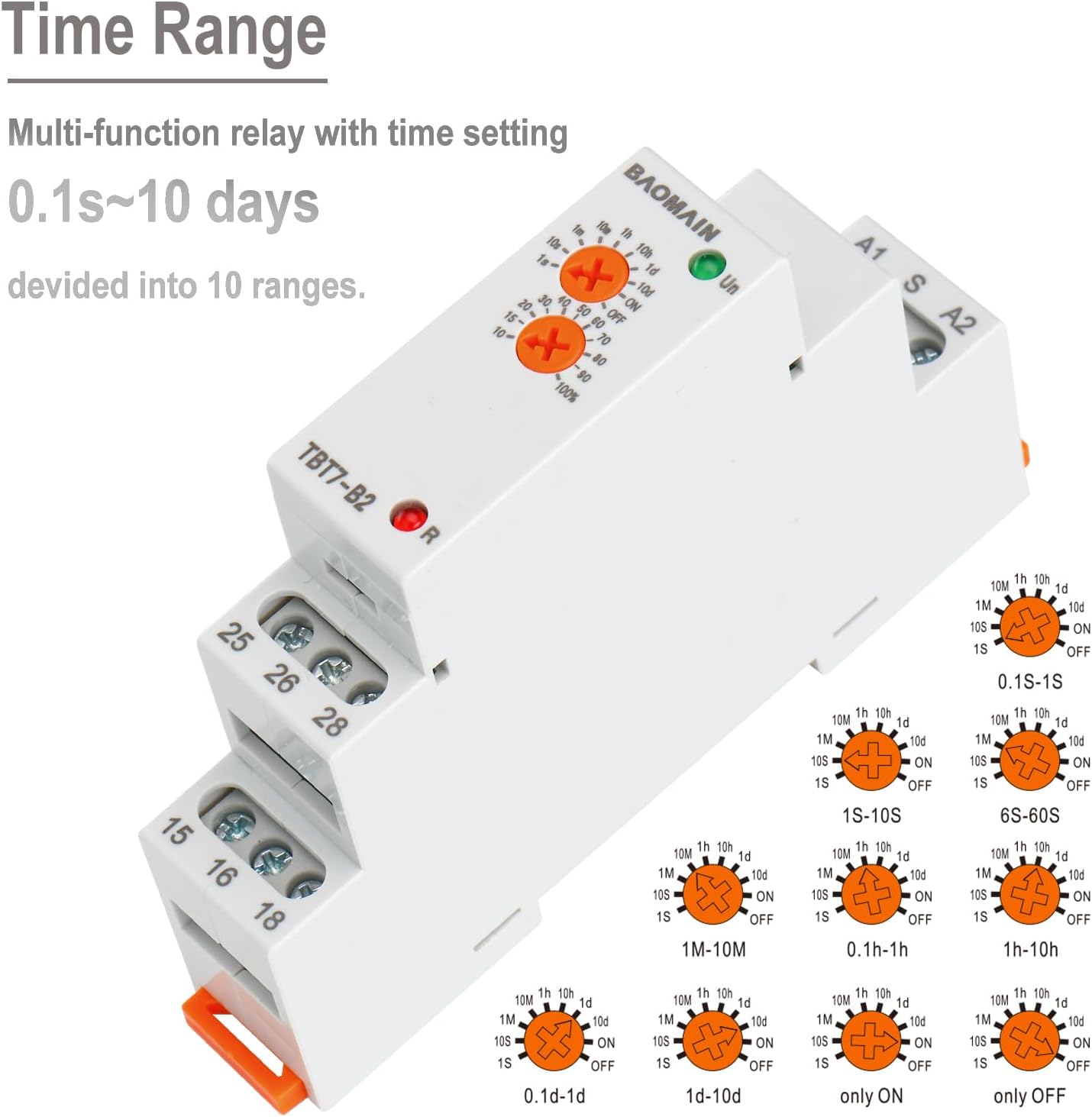

- [16A Heavy-Duty & 10-Day Range] Each of the two outputs supports a massive 16A (250VAC/24VDC) load, eliminating the need for extra contactors in many cases. The timing is adjustable from 0.1 seconds up to 10 days, providing unmatched flexibility for both short-pulse and long-cycle automation
- [Compact 18mm DIN Rail Design] Despite its dual-output and high-current capabilities, it maintains a slim 1-module (18mm) width. Fits standard 35mm DIN rails for efficient use of panel space. Features dual LED indicators: Green for Power status (Un) and Red for Output status (R)
- [Industrial Reliability & Wide Application] Built with flame-retardant housing and premium copper contacts for a mechanical life of 10 million cycles. Perfect for controlling multi-stage pumps, dual-ventilation fans, complex heating systems, and industrial sequence automation
| ASIN | B0CR18BQ8Q |
|---|---|
| Model | TBT7-B2-12v |
| Wattage | 6 watts |
| Brand Name | Baomain |
| Unit Count | 1.0 Count |
| Part Number | TBT7-B2-12v |
| Coil Voltage | 12 Volts |
| Contact Type | No Nc |
| Manufacturer | Baomain Electric |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 16 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | CE |
| Included Components | Timer Relay, Instruction |
| Number of Terminals | 2 |
| Contact Current Rating | 16 Amps |
| Upper Temperature Rating | 55 Degrees Celsius |
| Maximum Switching Current | 16 Amps |
| Maximum Switching Voltage | 240 Volts |
| Minimum Switching Voltage | 12 Volts |
