4-Channel Vehicle Audio Amplifier - 200 WRMS High-Powered Mono Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization - Banda 800.41OHM
Product details
| Management number | 209165766 | Release Date | 2026/03/29 | List Price | $63.98 | Model Number | 209165766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BANDA 1 ohm Four Channel 200 Watts Max @ 1 Ohm Car Audio Amplifier w/ Highpass Filter and Low Pass Filter - 800.41OHM * Total Power 14.4 @ 2 Ohms; 4 x 260 WRMS * Total Power 14.4 @ 4 Ohms: 2 x 520 WRMS * Total Power 12.6 @ 2 Ohms: 4 x 200 WRMS * Total Power 12.6 @ 4 Ohms: 2 x 400 WRMS * Efficiency @ 4 Ohms: 84% * Efficiency @ 2 Ohms: 78% * Input Voltage: 9 to 15V * Input Impedance: 22K Ohms * THD+Noise: less than 1% * Input Sensitivity: 150mV to 2.1V * SNR: 83dB * Recommended Fuse: 50 A * Current at Rest: 1 A * Average Current Draw (Sinusoidal): 90 A * Average Current Draw (Music): 40 A * Power Wire Gauge (min. Recommended): 16mm / 5 AWG * Speaker Wire Gauge (min. Recommended): 2 x 2.5mm / 2 x 14 AWG * Weight (Lb): 6.9 * Height (in): 2.2 * Width (in): 8.4 * Depth (in): 9.7
- POWER SUPPLY: Class D amplifier, Total Power 14.4 @ 2 Ohms; 4 x 260 WRMS Total Power 14.4 @ 4 Ohms: 2 x 520 WRMS Total Power 12.6 @ 2 Ohms: 4 x 200 WRMS Total Power 12.6 @ 4 Ohms: 2 x 400 WRMS Efficiency @ 4 Ohms: 84% Efficiency @ 2 Ohms: 78%

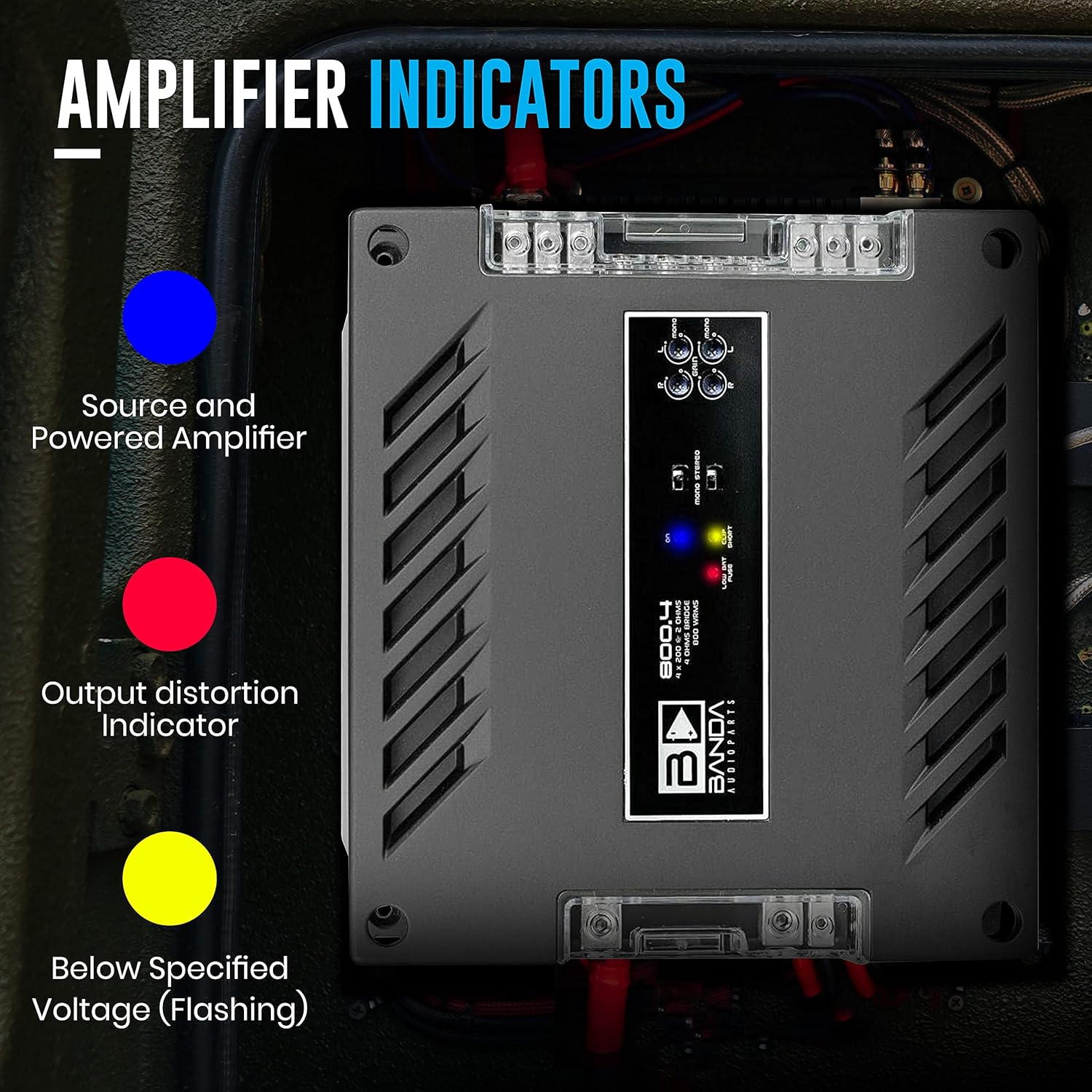

- CAR AUDIO AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
- POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 22K Ohms, THD+Noise: less than 1%, Input Sensitivity: 150mV to 2.1V, Signal to Noise Ratio: 83dB
- SOUND SPECIALIZATION: This high-powered full range Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
- OTHER TECHNICAL SPECS: Recommended Fuse: 50A, Current @ Rest: 1A, Ave. Sinusoidal Current Draw: 90A, Ave. Music Current Draw: 40A, Recommended Power Wire Gauge : 16mm/5 AWG, Recommended Speaker Wire Gauge: 2x2.5mm/2x14 AWG, Size: 9.7 x 8.4 x 2.2''
| Model | 800.41OHM |
|---|---|
| Voltage | 15 Volts |
| Brand Name | Banda Audioparts |
| Unit Count | 1.0 Count |
| Item Weight | 5 Pounds |
| Manufacturer | Deejayled |
| Output Power | 200 Watts |
| Mounting Type | Floor Standing |
| Item Type Name | BANDA 800 WATT 4 CH 1 OHM CAR AMP |
| Item Dimensions | 10 x 8 x 2 inches |
| Specification Met | FCC |
| Number of Channels | 4 |
| Included Components | 1 |
| Warranty Description | 1 |
