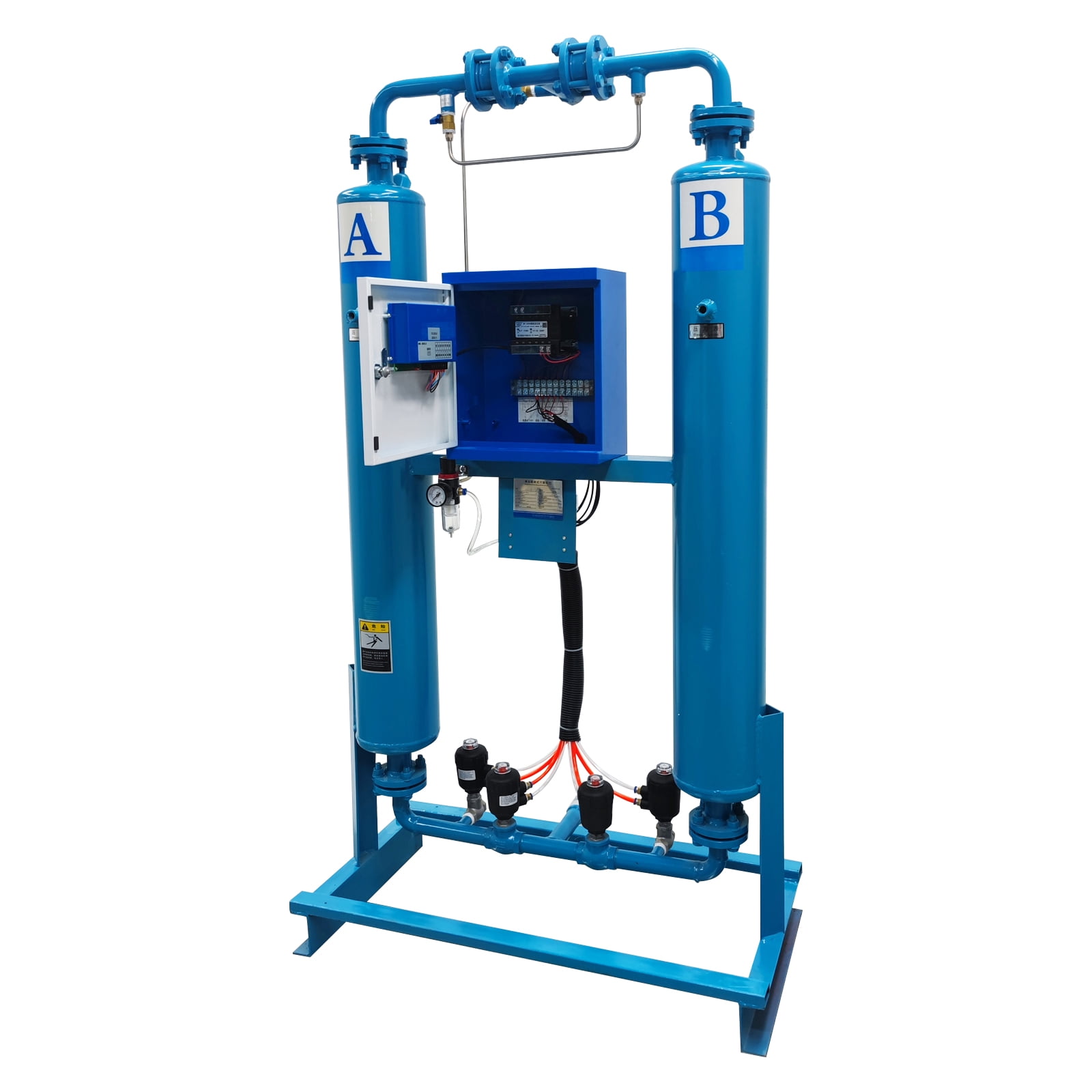

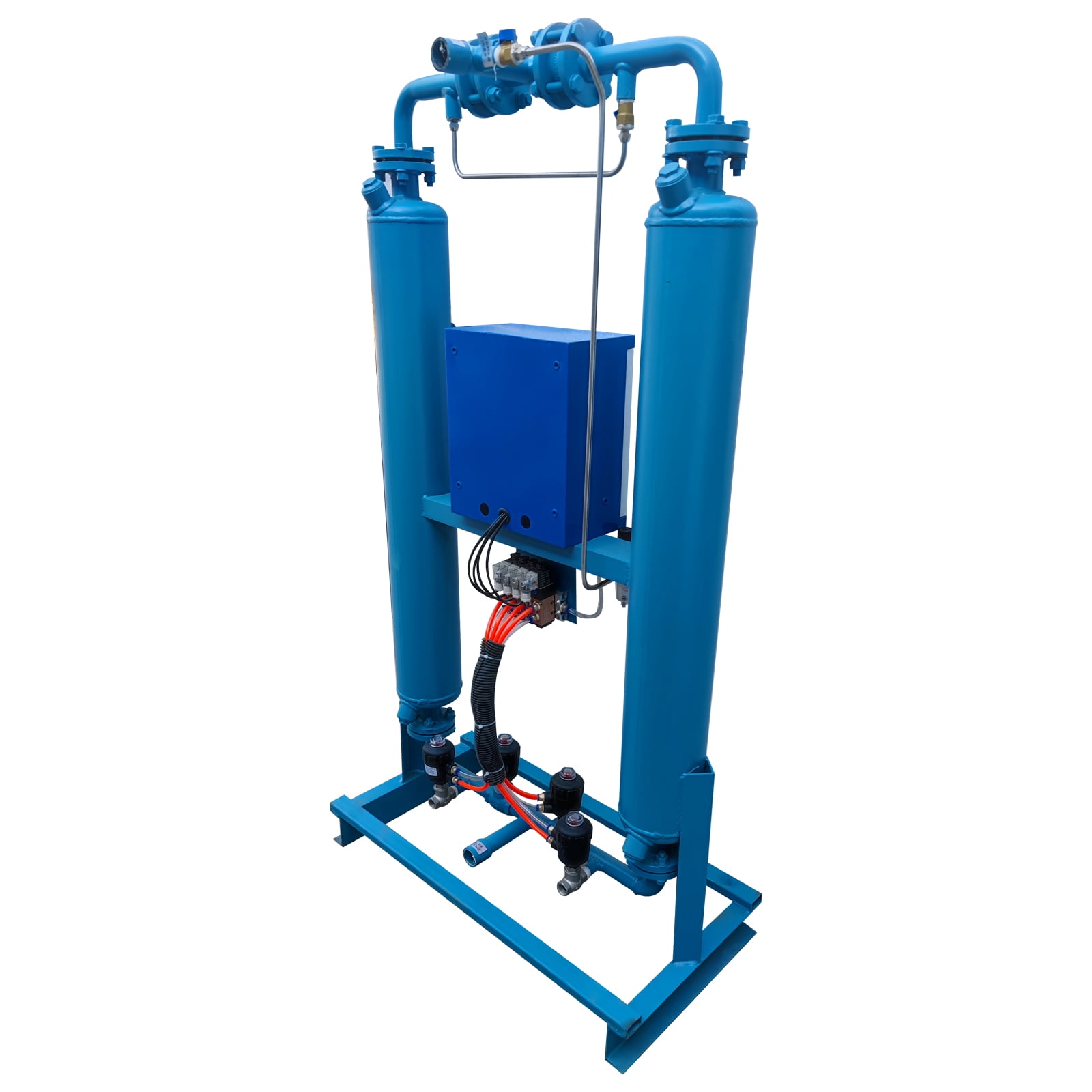

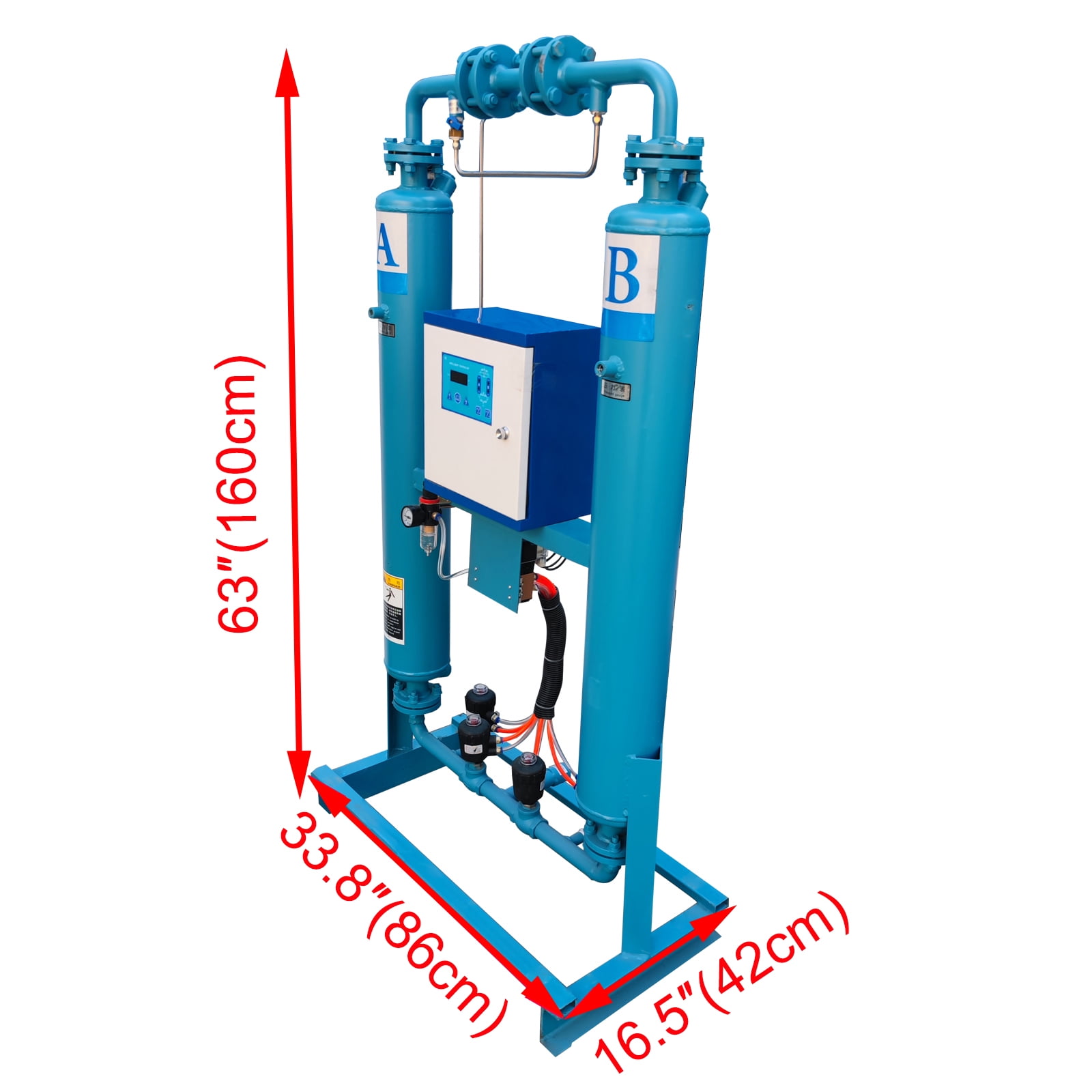

20FW Adsorption Air Compressor Dryer Machine with 7.5-15KW Air Compressor

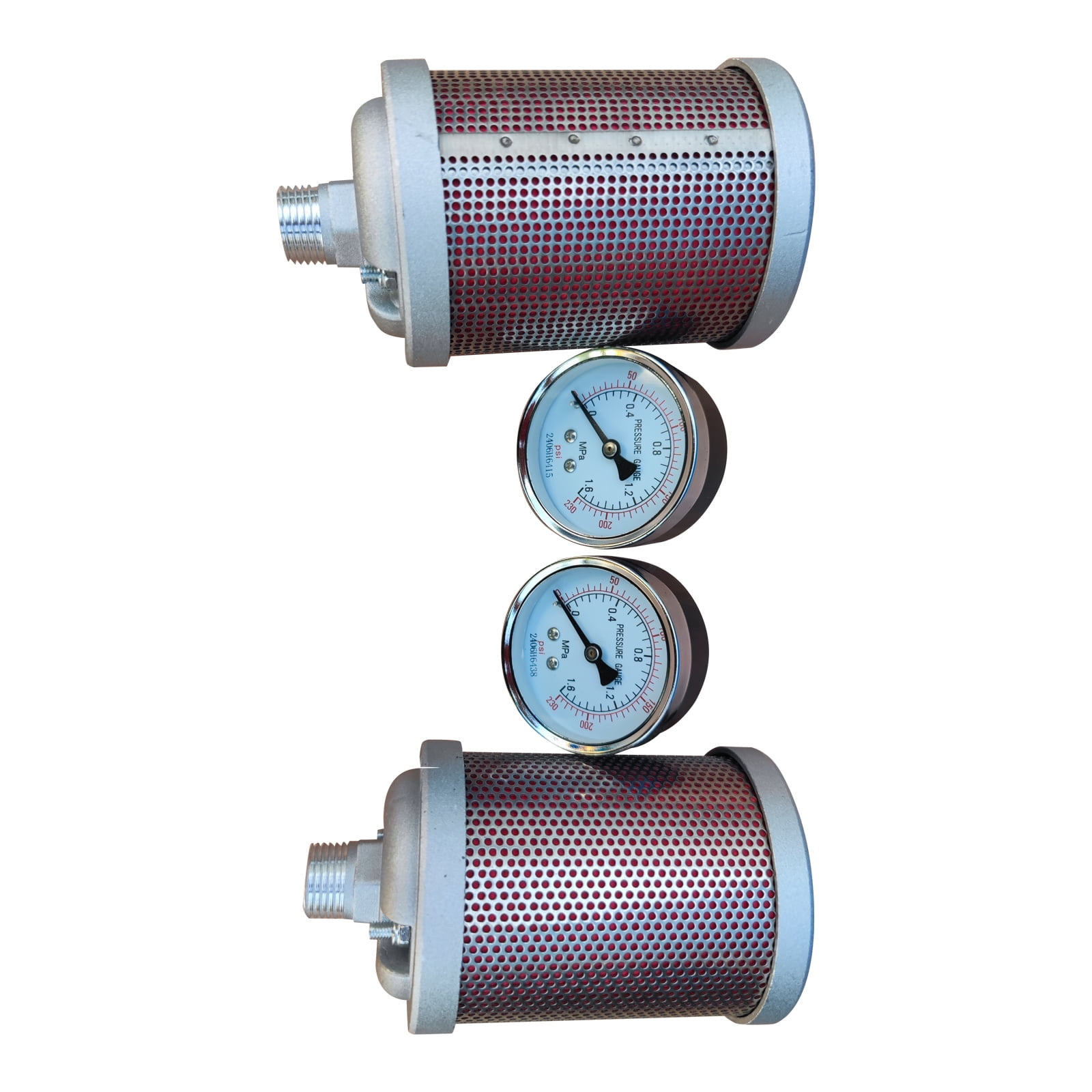

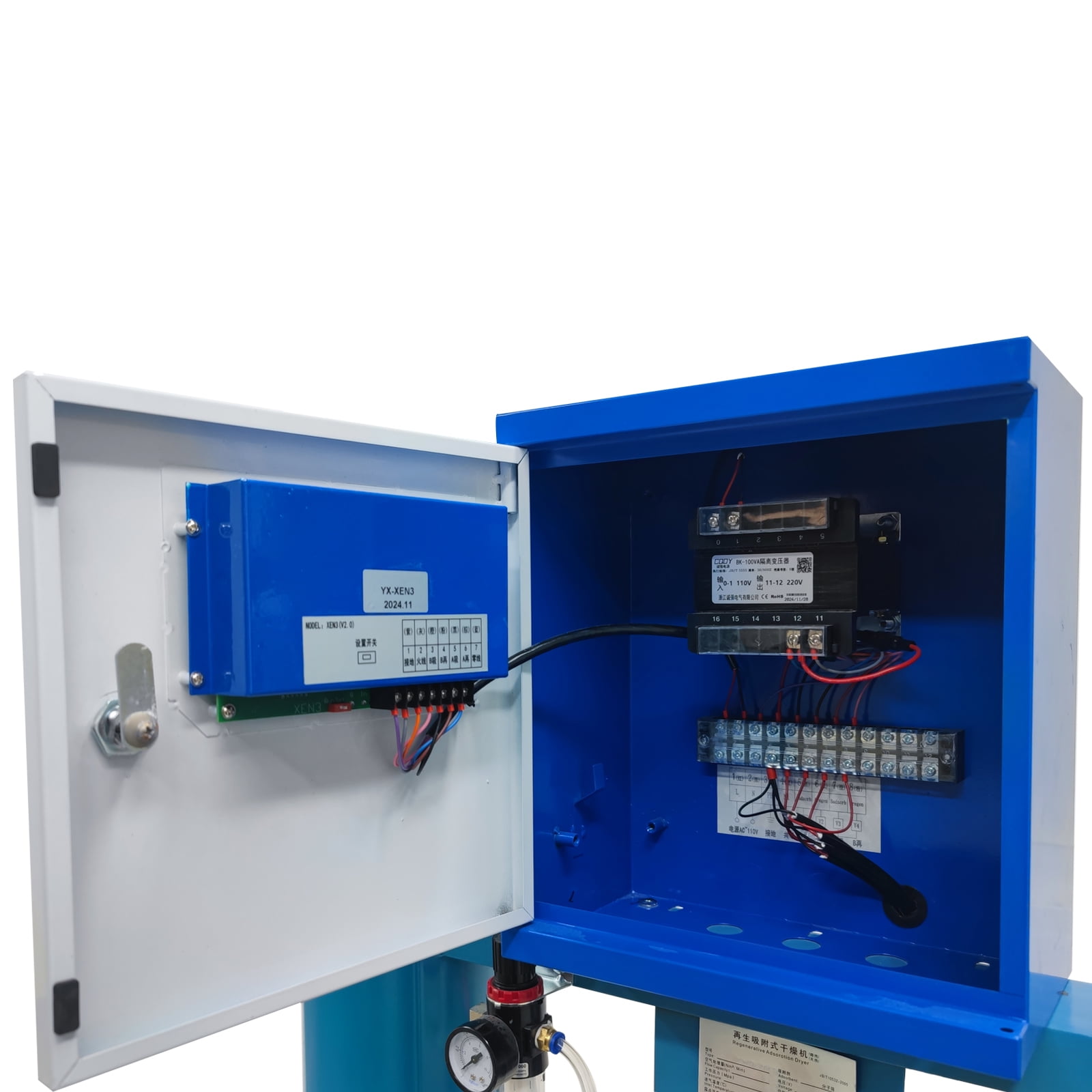

Introduction: <br>Thermal-free adsorption compressed air dryer is a kind of equipment for drying compressed air according to the principle of pressure change adsorption. The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss. This series of dryers is widely used in electronics, food, metallurgy, electric power, chemical industry, petroleum, medicine, light textile, tobacco, instrument, automatic control and other industries. <br>Note: <br>This machine does not have a power cord, you need to ask the electrician to connect it to the power supply. <br>Installation: <br>Users shall construct and install it according to the foundation drawing. <br>Pay attention to the verticality of the cylinder when installing the equipment. <br>The equipment shall be fastened and tightened after a period of use. <br>Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible. <br>In order to ensure safety, non-safe voltage electrical parts shall be effectively grounded. <br>The muffler shall be connected to the outside room. <br> <br>Parameter: <br>Treated Air Volume: 2.5M³/MIN <br>Inlet and Outlet Dimensions: 1 Inch Threaded Pipe <br>Bobbin Size: 159MM*1080MM <br>Individual Barrel Volume: 0.022M³ <br>No Thermal Gross Weight: 264LBS(120KG) <br>Adsorbent Weight: 88LBS(40KG) <br>Air Consumption: ≈12％ <br>Voltage: 110V <br>Withstand Voltage: 1.0MPA <br>Working Pressure: 0.4-1.0MPA <br>System Pressure Drop: ≤0.03MPA <br>Adsorbent: Aluminium Oxide(3-5MM) <br>Dew Point Temperature: -20℃ to -40℃ <br>Switching Cycle: 300S(Adjustable) <br>Control Mode: PLC <br>Intake Temperature: ≤45℃ <br>Intake Oil Content: ≤0.1PPM <br>Suppressor: 2PCS of XY-05 <br>Diffuser: 4PCS of DN25 <br>Normally Open Valve: Pneumatic Valve of DN25 <br>Normally Closed Valve: Pneumatic Valve of DN25 <br> <br>Items Included: 033276-EnzY <br>20FW Adsorption dryer Air Compressor Dryer 110V

• Environmental protection and energy saving, efficient water removal.
• Good safety and easy maintenance.
• The equipment is not easily corroded by sand blasting.
• The pressure of nylon hose is 1.0MPa (40℃).
• Mobile pipe connection is more convenient.
